387/485/559/649 nm BrightLine 四通带带通滤光片
- 透过率Tavg > 85%, 381.5 – 392.5 nm; Tavg > 90%, 475 – 495 nm; Tavg > 90%, 547 – 572 nm & Tavg> 90%, 643 – 656 nm
- 中心波长 387 nm, 485 nm, 559.5 nm & 649.5 nm；GMBW带宽 11 nm, 20 nm, 25 nm & 19.5 nm
FF01-387/485/559/649-25
Description
387/485/559/649 nm BrightLine 四通带带通滤光片
滤光片型号：FF01-387/485/559/649-25
Theoretical Spectrum for Part Number: FF01-387/485/559/649-25

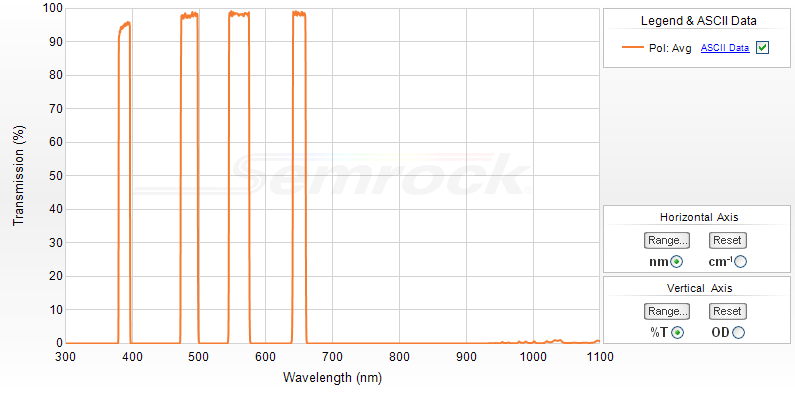

FF01-387/485/559/649-25带通滤光片透过率曲线，Semrock
387/485/559/649 nm BrightLine 四通带带通滤光片，25 mm直径，5 mm厚度
采用Semrock单基板结构的单个多波段荧光带通滤光片。这些滤光片具有极高的透过率、陡峭且轮廓分明的边缘，以及通带之间的出色阻断。全薄膜硬质膜层结构，性能和可靠性十分优异。
滤光片参数：
| Optical Specifications | Value |
|---|---|
| Transmission Band 1 | Tavg > 85% 381.5 – 392.5 nm |
| Transmission Band 2 | Tavg > 90% 475 – 495 nm |
| Transmission Band 3 | Tavg > 90% 547 – 572 nm |
| Transmission Band 4 | Tavg > 90% 643 – 656 nm |
| Blocking Band 1 | ODavg > 6 300 – 370 nm |
| Blocking Band 2 | OD > 3.5 406.3 nm |
| Blocking Band 3 | ODavg > 6 420 – 460 nm |
| Blocking Band 4 | OD > 3.5 467.5 nm |
| Blocking Band 5 | OD > 3.5 502.5 nm |
| Blocking Band 6 | ODavg > 6 510 – 531 nm |
| Blocking Band 7 | OD > 3.5 539 nm |
| Blocking Band 8 | OD > 3.5 580.8 nm |
| Blocking Band 9 | ODavg > 6 589.5 – 623.5 nm |
| Blocking Band 10 | OD > 3.5 633.3 nm |
| Blocking Band 11 | OD > 3.5 666.5 nm |
| Blocking Band 12 | ODavg > 6 677 – 722 nm |
| Blocking Band 13 | ODavg > 4 722 – 925 nm |
| Blocking Band 14 | ODavg > 2 925 – 1100 nm |
| Center Wavelength 1 | 387 nm |
| Center Wavelength 2 | 485 nm |
| Center Wavelength 3 | 559.5 nm |
| Center Wavelength 4 | 649.5 nm |
| Guaranteed Minimum Bandwidth 1 | 11 nm |
| Guaranteed Minimum Bandwidth 2 | 20 nm |
| Guaranteed Minimum Bandwidth 3 | 25 nm |
| Guaranteed Minimum Bandwidth 4 | 13 nm |
| FWHM Bandwidth 1 (nominal) | 17.1 nm |
| FWHM Bandwidth 2 (nominal) | 25.8 nm |
| FWHM Bandwidth 3 (nominal) | 30.6 nm |
| FWHM Bandwidth 4 (nominal) | 19.5 nm |
| General Filter Specifications | Value |
| Angle of Incidence | 0 ± 5 degrees |
| Cone Half-angle | 7 degrees |
| Optical Damage Rating | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours. |
| Physical Filter Specifications | Value |
| Transverse Dimensions (diameter) | 25 mm |
| Transverse Tolerance | + 0.0 / – 0.1 mm |
| Filter Thickness (mounted) | 5.0 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| Scratch-Dig | 60-40 |
| Filter Thickness (unmounted) | 2.0 mm |
| Filter Thickness Tolerance (unmounted) | ± 0.1 mm |
| Orientation | Arrow on ring indicates preferred direction of propagation of light |
