475/543/702 nm BrightLine 三通带带通滤光片
- 透过率Tavg > 93%, 464 – 486 nm; Tavg > 93%, 532 – 554 nm & Tavg > 93%, 603 – 800 nm
- 中心波长 475 nm, 543 nm & 701.5 nm； GMBW带宽 22 nm, 22 nm & 197 nm
FF01-475/543/702-25
Description
475/543/702 nm BrightLine 三通带带通滤光片
滤光片型号：FF01-475/543/702-25
Theoretical Spectrum for Part Number: FF01-475/543/702-25

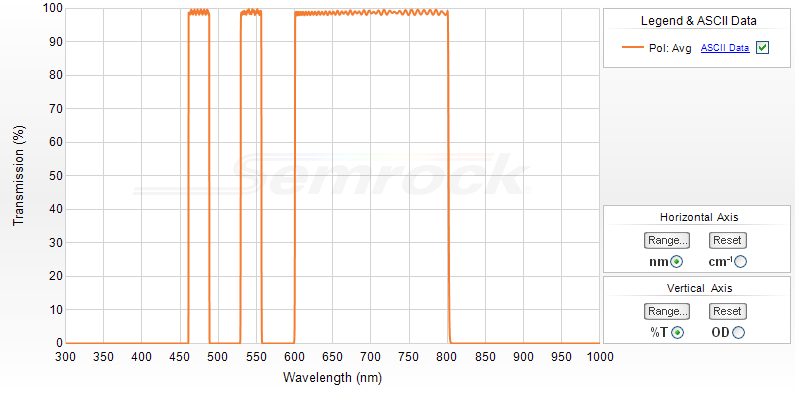

FF01-475/543/702-25带通滤光片透过率曲线，Semrock
475/543/702 nm BrightLine 三通带带通滤光片，25 mm直径，3.5 mm厚度
采用Semrock单基板结构的单个多波段荧光带通滤光片。这些滤光片具有极高的透过率、陡峭且轮廓分明的边缘，以及通带之间的出色阻断。全薄膜硬质膜层结构，性能和可靠性十分优异。
滤光片参数：
| Optical Specifications | Value |
|---|---|
| Transmission Band 1 | Tavg > 93% 464 – 486 nm |
| Transmission Band 2 | Tavg > 93% 532 – 554 nm |
| Transmission Band 3 | Tavg > 93% 603 – 800 nm |
| Blocking Band 1 | ODavg > 4 275 – 426 nm |
| Blocking Band 2 | ODavg > 8 426 – 450 nm (Design specification – measurements are noise-floor limited). |
| Blocking Band 3 | OD > 3.5 458.5 nm |
| Blocking Band 4 | OD > 3.5 491.8 nm |
| Blocking Band 5 | ODavg > 8 497.6 – 519.5 nm (Design specification – measurements are noise-floor limited) |
| Blocking Band 6 | OD > 3.5 525.8 nm |
| Blocking Band 7 | OD > 3.5 560.7 nm |
| Blocking Band 8 | ODavg > 8 567.4 – 588.6 nm (Design specification – measurements are noise-floor limited) |
| Blocking Band 9 | OD > 3.5 595.8 nm |
| Blocking Band 10 | ODavg > 5 810.8 – 900 nm |
| Center Wavelength 1 | 475 nm |
| Center Wavelength 2 | 543 nm |
| Center Wavelength 3 | 701.5 nm |
| Guaranteed Minimum Bandwidth 1 | 22 nm |
| Guaranteed Minimum Bandwidth 2 | 22 nm |
| Guaranteed Minimum Bandwidth 3 | 197 nm |
| FWHM Bandwidth 1 (nominal) | 27.2nm |
| FWHM Bandwidth 2 (nominal) | 27.2 nm |
| FWHM Bandwidth 3 (nominal) | 201.3 nm |
| General Filter Specifications | Value |
| Angle of Incidence | 0 ± 5 degrees |
| Cone Half-angle | 7 degrees |
| Optical Damage Rating | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours. |
| Physical Filter Specifications | Value |
| Transverse Dimensions (diameter) | 25 mm |
| Transverse Tolerance | + 0.0 / – 0.1 mm |
| Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 22 mm |
| Scratch-Dig | 60-40 |
| Filter Thickness (unmounted) | 2.0 mm |
| Filter Thickness Tolerance (unmounted) | ± 0.1 mm |
| Orientation | Arrow on ring indicates preferred direction of propagation of light |
