650-1300nm Semrock通用反射镜
- 反射率Ravg > 98% ，650 – 1300 nm
- 45 度入射角
MGP01-650-1300-25×36
Description
650 – 1300 nm Semrock通用反射镜
滤光片型号：MGP01-650-1300-25×36

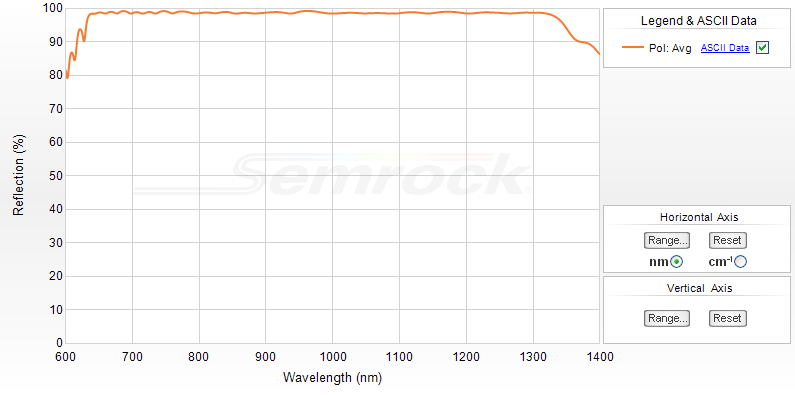

Theoretical Spectrum for Part Number:MGP01-650-1300-25×36
MGP01-650-1300-25×36 通用反射镜反射率曲线，Semrock
650-1300nm Semrock通用反射镜，25.2 mm x 35.6 mm，厚度1.1 mm
Semrock 的通用反射镜具有高反射率和“成像级平面度”反射。这些反射镜可以用在显微镜上，也可以被研究人员用于光束控制。
滤光片参数：
| Optical Specifications | Value |
|---|---|
| Reflection Band 1 | Ravg > 98% 650 – 1300 nm |
| Reflection Band 1 (p-pol) | Ravg > 96% 650 – 1300 nm |
| Reflection Band 1 (s-pol) | Ravg > 99.5% 650 – 1300 nm |
| General Filter Specifications | Value |
| Angle of Incidence | 45 ± 1.5 degrees |
| Optical Damage Rating | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours. |
| Pulse Dispersion | This mirror will not introduce appreciable pulse broadening for most laser pulses that are > 1 picosecond; however, pulse distortion is likely for significantly shorter laser pulses, including femtosecond pulses. |
| Reflected Wavefront Error | < 2λ P-V RWE @ 632.8 nm |
| Flatness / RWE Classification | Image-splitting |
| Physical Filter Specifications | Value |
| Transverse Dimensions (L x W) | 25.2 mm x 35.6 mm |
| Transverse Tolerance | ± 0.1 mm |
| Clear Aperture | ≥ 80% (elliptical) |
| Scratch-Dig | 60-40 |
| Filter Thickness (unmounted) | 1.05 mm |
| Filter Thickness Tolerance (unmounted) | ± 0.05 mm |
| Orientation | Reflective surface marked with part number – Orient in direction of incoming light |
