SLC-2445线型纳米压电位移台
SLC-2445 的行程范围为 29 mm，负载能力为 30 N，尺寸为 45 x 24 x 10.5 mm。

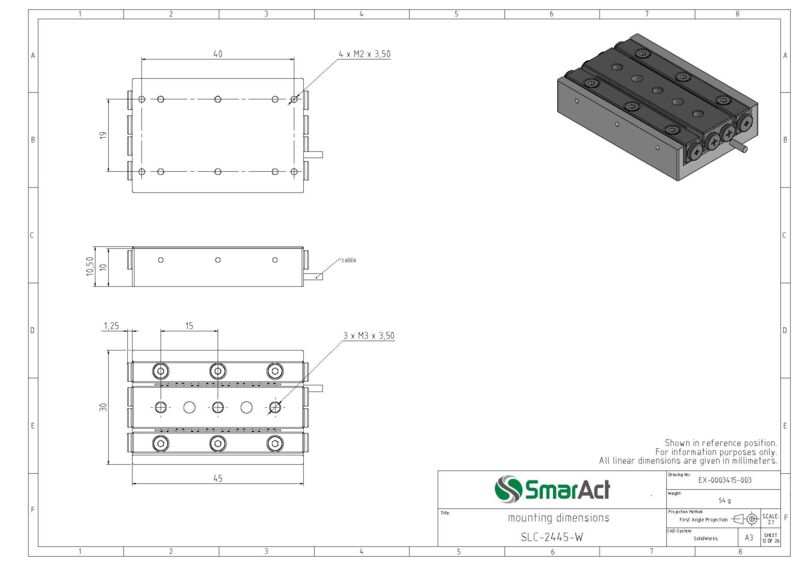

请注意，该线性压电位移台的可下载文档显示了配备S位置传感器的用于大气或高压环境的SLC-2445的尺寸和规格。有关其他变体的技术图纸和详细规格，例如 UHV 兼容位移台、具有更高负载能力的位移台或其他传感器选项，请随时与我们联系。
还提供高性能闭环低温变体。
主要规格
|
Mechanical
|
|
|
Scan Range [µm]
|
> 1.3
|
|
Travel [mm]
|
29
|
|
Blocking Force [N]
|
≥ 3.5
|
|
Max. Normal Force [N]
|
30
|
|
Max. Lift Force [N]
|
1.5
|
|
Dimensions [mm]
|
45 x 24 x 10.5
|
|
Weight [g]
|
54
|
|
Open-loop
|
|
|
Velocity [mm/s]
|
> 20
|
|
Open-Loop Resolution MCS2 [nm]
|
< 1
|
|
Open-Loop Resolution (H)CU [nm]
|
< 50
|
|
Closed-Loop
|
|
|
Sensor Resolution MCS2 [nm]
|
1 (S), 4 (L)
|
|
Sensor Resolution (H)CU [nm]
|
100 (L)
|
|
Uni-Directional Repeatability MCS2 [nm]
|
± 40 (S,L)
|
|
Uni-Directional Repeatability (H)CU [nm]
|
± 200 (L)
|
|
Options
|
|
|
Material Options
|
Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK)
|
|
Mechanical Options
|
U-shaped base for higher mechanical strength (-W): width is 6 mm larger; cage-creep-free guideways (-Z)
|
|
Performance Options
|
Higher blocking force (-D): +1.5 N
|
|
Cryogenic Option
|
Yes
|
|
Vacuum Options
|
HV (1E-6 mbar); UHV (1E-11 mbar)
|
|
Non-Magnetic Option
|
Yes. Changes of the slide hole pattern apply: all threaded holes
|
