433/517/613 nm BrightLine 三通带带通滤光片
- 透过率Tavg > 90%, 414 – 452 nm; Tavg > 90%, 505 – 530 nm & Tavg > 90%, 582 – 645 nm
- 中心波长 433 nm, 517.5 nm & 613.5 nm; GMBW带宽 38 nm, 25 nm & 63 nm
FF01-433/517/613-25
Description
433/517/613 nm BrightLine 三通带带通滤光片
滤光片型号：FF01-433/517/613-25
Theoretical Spectrum for Part Number: FF01-433/517/613-25

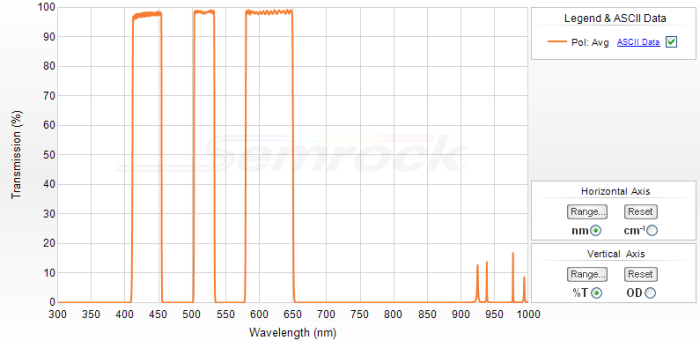

FF01-433/517/613-25带通滤光片透过率曲线，Semrock
433/517/613 nm BrightLine 三通带带通滤光片，25 mm直径，3.5 mm厚度
采用Semrock单基板结构的单个多波段荧光带通滤光片。这些滤光片具有极高的透过率、陡峭且轮廓分明的边缘，以及通带之间的出色阻断。全薄膜硬质膜层结构，性能和可靠性十分优异。
滤光片参数：
| Optical Specifications | Value |
|---|---|
| Transmission Band 1 | Tavg > 90% 414 – 452 nm |
| Transmission Band 2 | Tavg > 90% 505 – 530 nm |
| Transmission Band 3 | Tavg > 90% 582 – 645 nm |
| Blocking Band 1 | ODavg > 6 300 – 393 nm |
| Blocking Band 2 | OD > 3.5 403.5 nm |
| Blocking Band 3 | OD > 3.5 459 nm |
| Blocking Band 4 | ODavg > 6 466 – 490 nm |
| Blocking Band 5 | OD > 3.5 497.5 nm |
| Blocking Band 6 | OD > 3.5 538 nm |
| Blocking Band 7 | ODavg > 6 546 – 565 nm |
| Blocking Band 8 | OD > 3.5 573.5 nm |
| Blocking Band 9 | ODavg > 6 664 – 750 nm |
| Blocking Band 10 | ODavg > 6 750 – 850 nm |
| Center Wavelength 1 | 433 nm |
| Center Wavelength 2 | 517.5 nm |
| Center Wavelength 3 | 613.5 nm |
| Guaranteed Minimum Bandwidth 1 | 38 nm |
| Guaranteed Minimum Bandwidth 2 | 25 nm |
| Guaranteed Minimum Bandwidth 3 | 63 nm |
| FWHM Bandwidth 1 (nominal) | 43.5 nm |
| FWHM Bandwidth 2 (nominal) | 31.4 nm |
| FWHM Bandwidth 3 (nominal) | 70.5 nm |
| General Filter Specifications | Value |
| Angle of Incidence | 0 ± 5 degrees |
| Cone Half-angle | 7 degrees |
| Optical Damage Rating | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours. |
| Physical Filter Specifications | Value |
| Transverse Dimensions (diameter) | 25 mm |
| Transverse Tolerance | + 0.0 / – 0.1 mm |
| Filter Thickness (mounted) | 3.5 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 22 mm |
| Scratch-Dig | 60-40 |
| Filter Thickness (unmounted) | 2.0 mm |
| Filter Thickness Tolerance (unmounted) | ± 0.1 mm |
| Orientation | Arrow on ring indicates preferred direction of propagation of light |
