513/13 nm BrightLine 带通滤光片
- 透过率Tavg > 93%，506.5 – 519.5 nm
- 中心波长 513 nm，GMBW带宽 13 nm
- 带宽FWHM 17.5 nm
FF01-513/13-25
Description
513/13 nm BrightLine 带通滤光片
滤光片型号：FF01-513/13-25
Theoretical Spectrum for Part Number: FF01-513/13-25

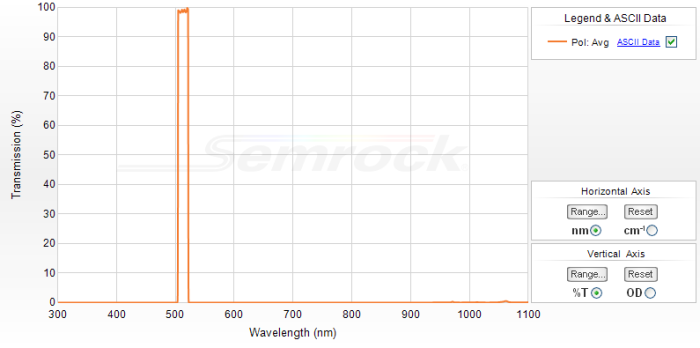

FF01-513/13-25带通滤光片透过率曲线，Semrock
513/13 nm BrightLine 带通滤光片，25 mm直径，5 mm厚度
Semrock针对各种荧光仪器进行了优化的单个荧光带通滤光片。采用硬镀膜结构，具有优异的性能和可靠性。
滤光片参数：
| Optical Specifications | Value |
|---|---|
| Transmission Band 1 | Tavg > 93% 506.5 – 519.5 nm |
| Blocking Band 1 | ODavg > 5 200 – 300 nm (Design specification – measurements are noise-floor limited). |
| Blocking Band 2 | ODavg > 6 300 – 496.4 nm |
| Blocking Band 3 | ODavg > 8 474 – 494.5 nm (Design specification – measurements are noise-floor limited) |
| Blocking Band 4 | OD > 3.5 500.5 nm |
| Blocking Band 5 | OD > 3.5 525.8 nm |
| Blocking Band 6 | ODavg > 8 532 – 554 nm (Design specification – measurements are noise-floor limited) |
| Blocking Band 7 | ODavg > 8 603 – 800 nm (Design specification – measurements are noise-floor limited) |
| Blocking Band 8 | ODavg > 6 530.4 – 850 nm |
| Blocking Band 9 | ODavg > 4 850 – 925 nm |
| Blocking Band 10 | ODavg > 2 925 – 1100 nm |
| Center Wavelength 1 | 513 nm |
| Guaranteed Minimum Bandwidth 1 | 13 nm |
| FWHM Bandwidth 1 (nominal) | 17.5 nm |
| General Filter Specifications | Value |
| Angle of Incidence | 0 ± 5 degrees |
| Cone Half-angle | 7 degrees |
| Optical Damage Rating | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours. |
| Physical Filter Specifications | Value |
| Transverse Dimensions (diameter) | 25 mm |
| Transverse Tolerance | + 0.0 / – 0.1 mm |
| Filter Thickness (mounted) | 5.0 mm |
| Filter Thickness Tolerance (mounted) | ± 0.1 mm |
| Clear Aperture | ≥ 21 mm |
| Scratch-Dig | 60-40 |
| Filter Thickness (unmounted) | 2.0 mm |
| Filter Thickness Tolerance (unmounted) | ± 0.1 mm |
| Orientation | Arrow on ring indicates preferred direction of propagation of light |
